Flexible solution for complex flow control
MULTI-WAY BALL VALVE TYPE MW
Size
DN 15 - DN 250
Pressure max.
-1 bar to +250 bar
Temperature
from -196°C to +500°C
Flexible solution for complex flow control

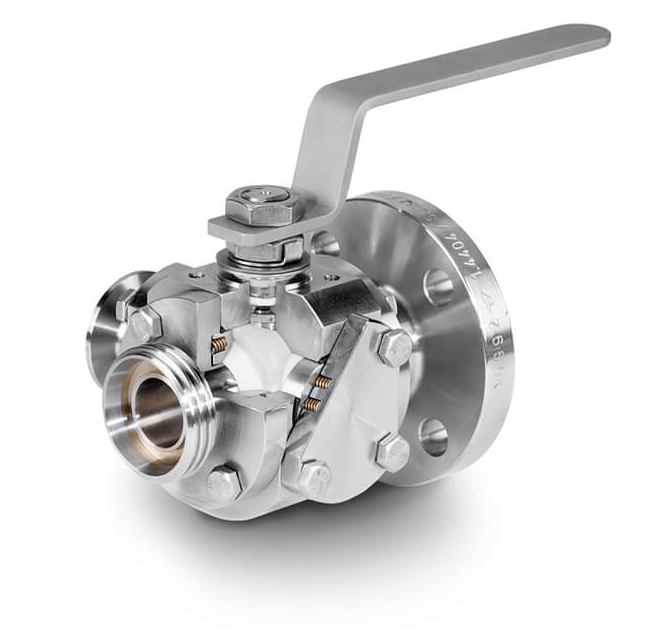

MULTI-WAY BALL VALVE TYPE MW

The multi-way ball valve type MW is available in 3-way ball valve, 4-way ball valve, and 5-way ball valve configurations with T- or L-port ball designs. Additionally, custom variants with double-L ball, piggable passages, and other tailored configurations are available.

The 3-way ball valve type MW features a fully spring-loaded, dead space-free ball sealing system, making it ideal for media that crystallize, polymerize, or harden in dead spaces between the ball and housing, preventing operational issues.

INQUIRE NOW
Cavity free
All sided sealed
Spring loaded sealing system
T- or L- bore
Blow out proof stem

Technical data

  • Application

    Applicable

    › Pipeline

    Areas of application:

    › Chemical

    › Pharmaceutical

    › Food

    › Cosmetics

  • Medium

    › Gases

    › Fluids

    › Emulsion

    › Sirup

    › Suspension

    › Granulate material

    › Powder

  • Design

    Design

    › Cavity free

    › Full bore

    › T- or L- bore configuration

    › All sided sealed

    › Spring loaded ball sealing system

    › Sealing pressure adjustable by means of spiral coil springs

    › Chambered coil springs

    › Self adjustable, maintenance free stem sealing with additional o-ring

    › blow out proof stem

    Additional according to customer requirements:

    › Metal to metal sealing system for high pressure, high temperature and abrasive operating conditions

    › Heating jacket

    › Flushing connection

    › Special sizes

    › Special face to face length

    › Special piping connection

    › ANSI connection

    › Extended stem

    › Double packed stuffing box design

    › Antistatic- Design

    › Fire Safe Design

    › Horizontal or vertical configuration

    › 120°- design

    › Double-L configuration

    › Without overlap- design

    › Product wetted surfaces Ra<0,8μm

    › Electropolished surfaces

    › Oil - and fat free design

    › Silicone free design

    › Further extras available on request

    Connection to pipeline:

    › Flange acc. to EN1092-1

    › Weld end acc. to DIN11850

    › Thread acc. to DIN11851

    › Clamp acc. to DIN32676

    Tightness test:

    › Acc. To EN 12266-1 leak rate A

    Actuator mounting flange:

    › Nach DIN/ISO 5211

    Certificates:

    › TA-Luft

    › ATEX 94/9/EG

  • Material

    Metal: 1.4404

    Ball sealing: PTFE & PTFE/25% Glass fibre

    O-Rings: Viton, EPDM or FEP-Viton

    Stem sealing: Packing out of PTFE or pure graphite with additional o-ring

    Coil springs: 1.4404

  • Special material

    Metal: austenite stainless steel (904L, 472/649, etc.) nickel- base alloy ( Hastelloy ® B, Hastelloy ® C, C276, Alloy 59 etc.) Duplex , Titanium, Monel ®, Inconel ®, Incoloy ®, Zirconium
    Further materials on request

    Ball sealing: PTFE- Compounds (glass, carbon, graphite, stainless steel, etc.), PEEK, Polyimide, Metal to metal sealing system - High velocity oxygen spraying (HVOF), Flame spraying with additional thermal compaction, Laser deposition welding and Plasma-transferred arc welding (PTA)
    Further materials on request

    Further sealing: graphite, FEP coated Compounds, PFA coated Compounds, Kalrez, high- and low temperature - Kalrez, PFA/FEP coated stainless steel for cryogenic application, silver coated metallic o- and c-rings

    Conformity: USP, FDA, EFSA, ADI, 3-A, oil- and fat free
    Further conformity on request

    Stem sealing: PTFE chevron packing, high temperature packing
    Further materials on request

    Coil springs: Hastelloy ®
    Further materials on request

  • Downloads

    Downloads

    Data sheet   |  Product brochure

    Assembly instruction

Advantages

ATEC Multi-way Ball Valve Type_MW

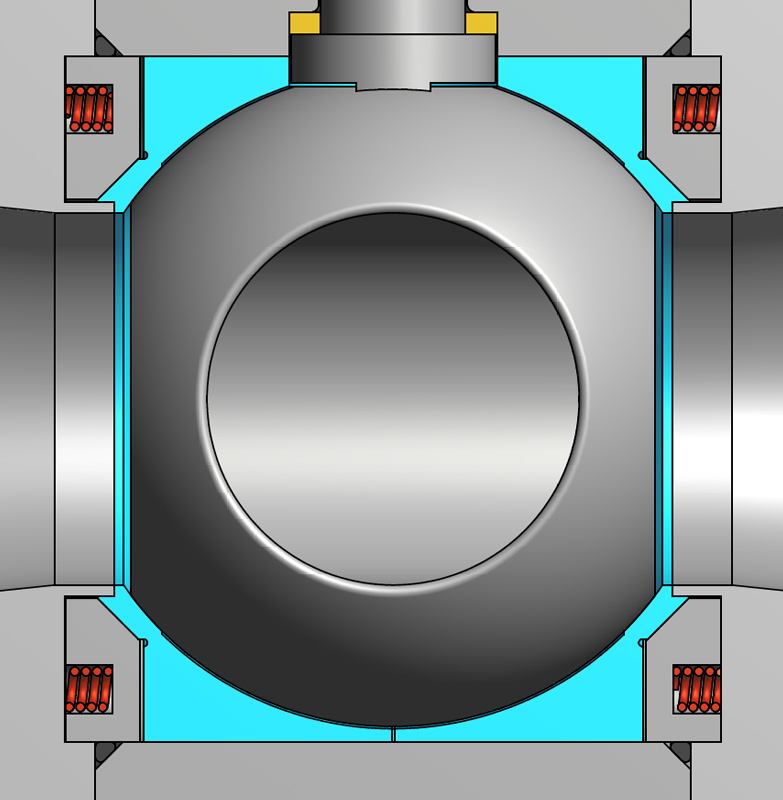

Cavity free

The usual cavity between ball and housing in non- cavity free ball valves give cause for disturbance because residual products can crystallize, polymerize and so affect the function.

› Clean, non- false product

› No sediments of expensive products in the ball valve housing

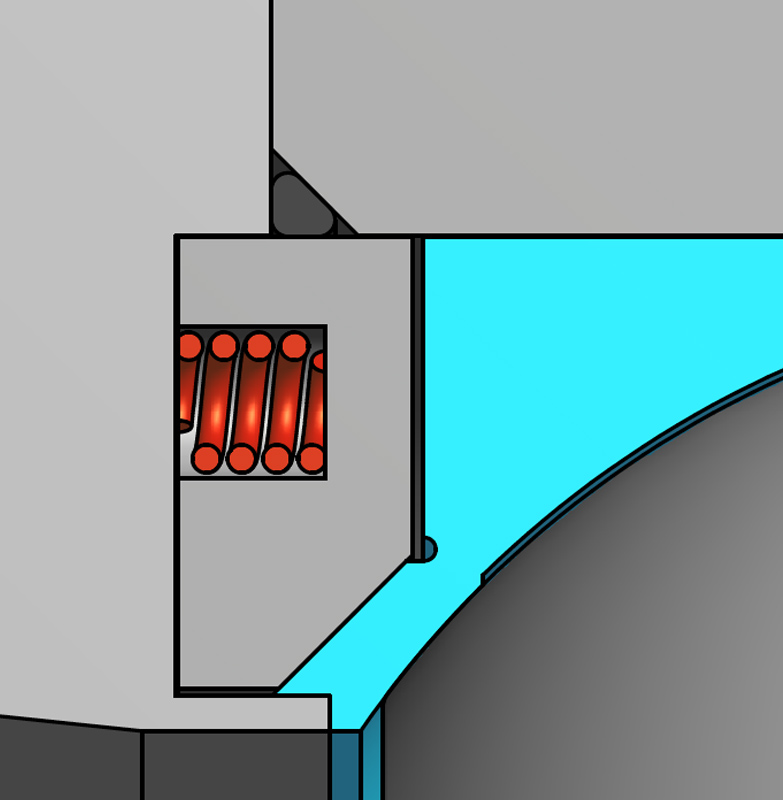

Spring loaded ball sealing system

Approximately same torque at different temperatures This request can only be achieved by ball valves with a spring-loaded sealing system. Different heat expansion of metallic and synthetic material cause high torques by non spring-loaded sealing systems so that the valve can block and does not open or close anymore. Longer lifetime through spring- loaded sealing system. Spring-loaded cavity free ball valves achieve this improvement in a variety of processes. At abrasion, the spring-loaded sealing system guarantees a controlled compression of the ball sealing so that longer sealing life and leak-tightness can be realized

› Longer Lifetime

› Same torque at different temperatures

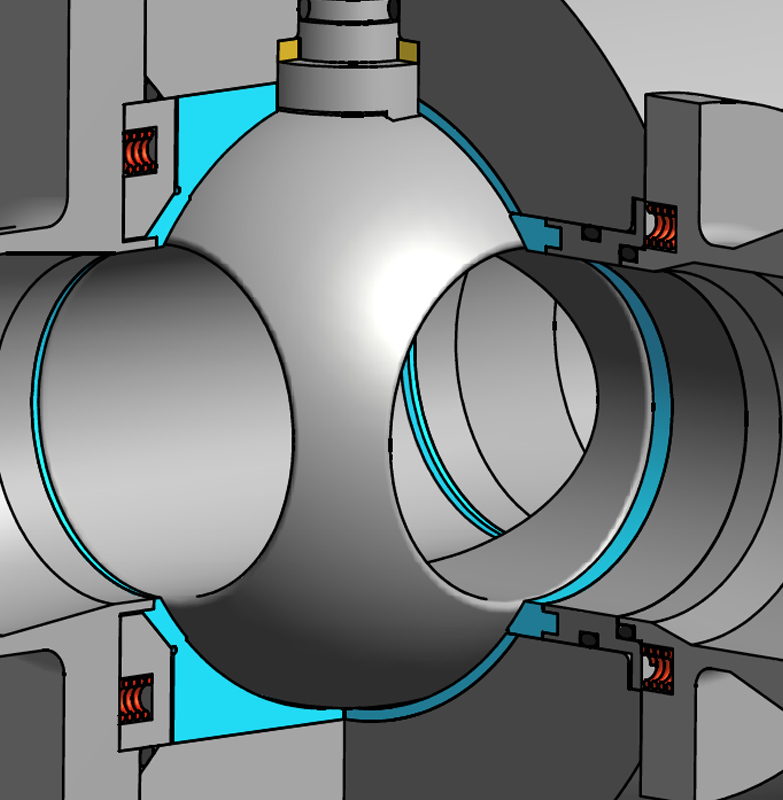

All sides sealed

All sides of the ball valve are spring loaded sealed.

› All sides tight – independent product inlet

Our type selection

Multi-way ball valves from ATEC are characterized by all-round sealing and a blowout-proof control shaft. Available as T- or L-drilling.

Pic

TYP_ECOLINE

» DN 15 - 50

» Standard Configuration

To the product
