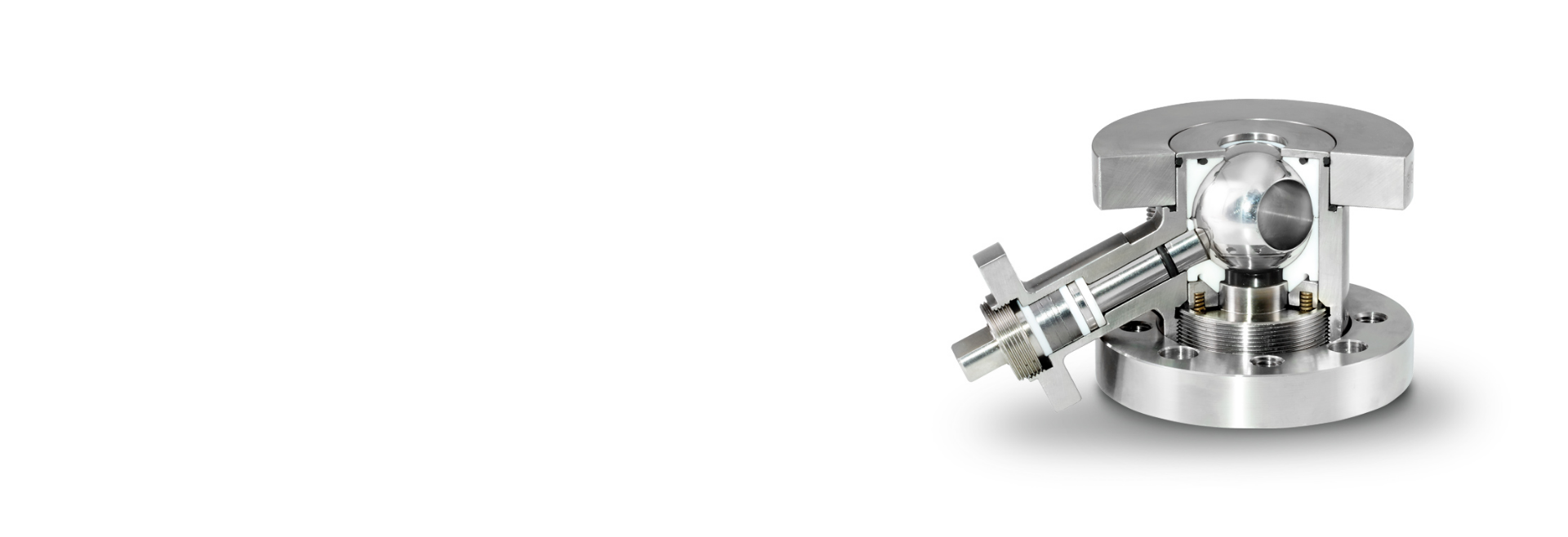

Background Image

Bottom Outlet
Ball Valve

For the clean, unadulterated handling of materials

Our Bottom Outlet Ball Valves are optimized for numerous fields of application where accuracy and effectiveness are required. A wide range of types as well as custom-made products produced in-house are used e.g. in agitator tanks or reactors. ATEC ball valves are low-maintenance and durable thanks to compliance with the highest quality standards.

Inquire now

Our type selection

Bottom Outlet Ball Valves from ATEC stand for a low-sump and dead-space-free design. Particularly suitable for applications in chemistry, pharmaceuticals, food and cosmetics.

Pic

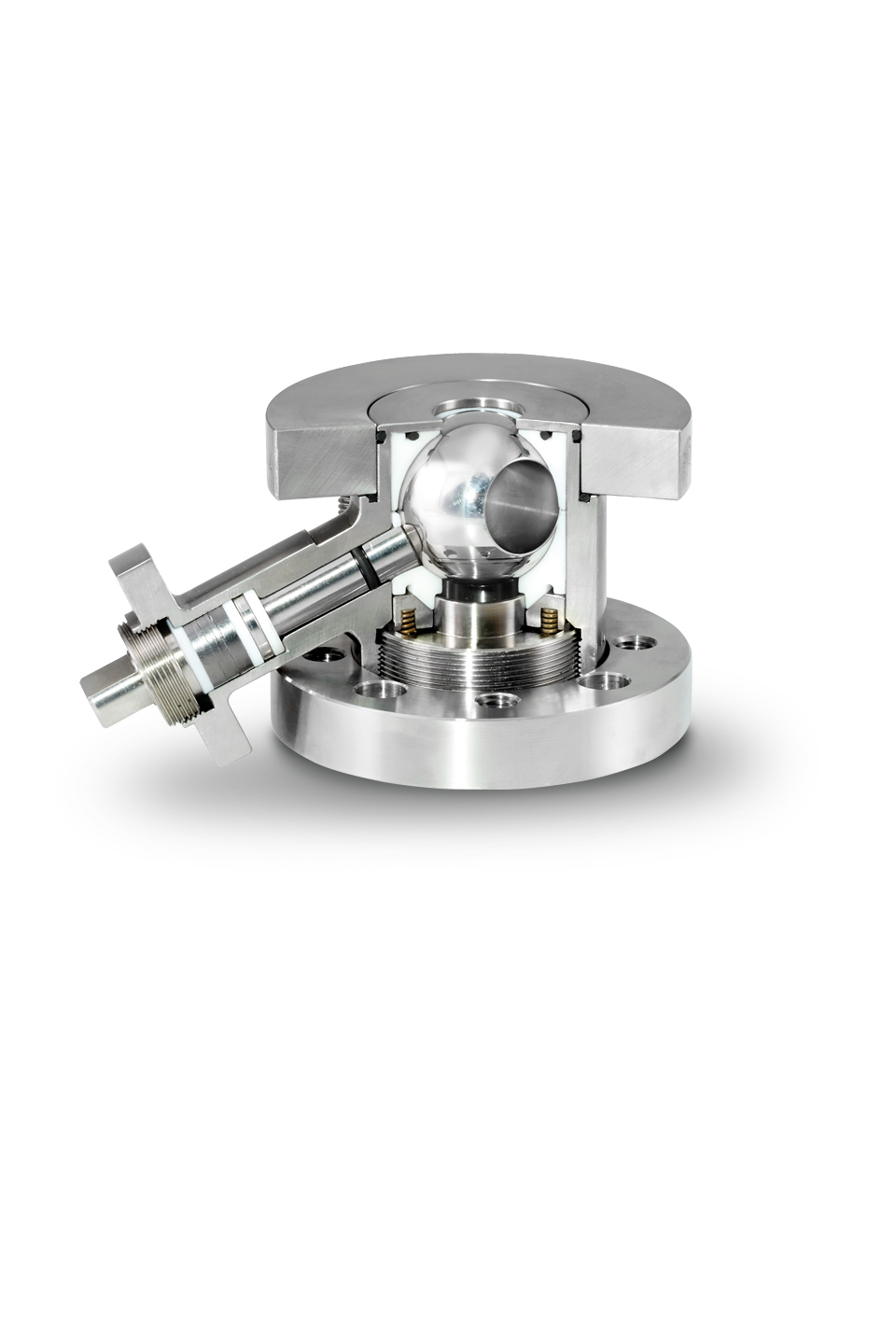

TYPE_BL

» DN 15 - 100

» Cavity free

» Low sump area

» Intermediate flange version

» Customised designs possible
Pic

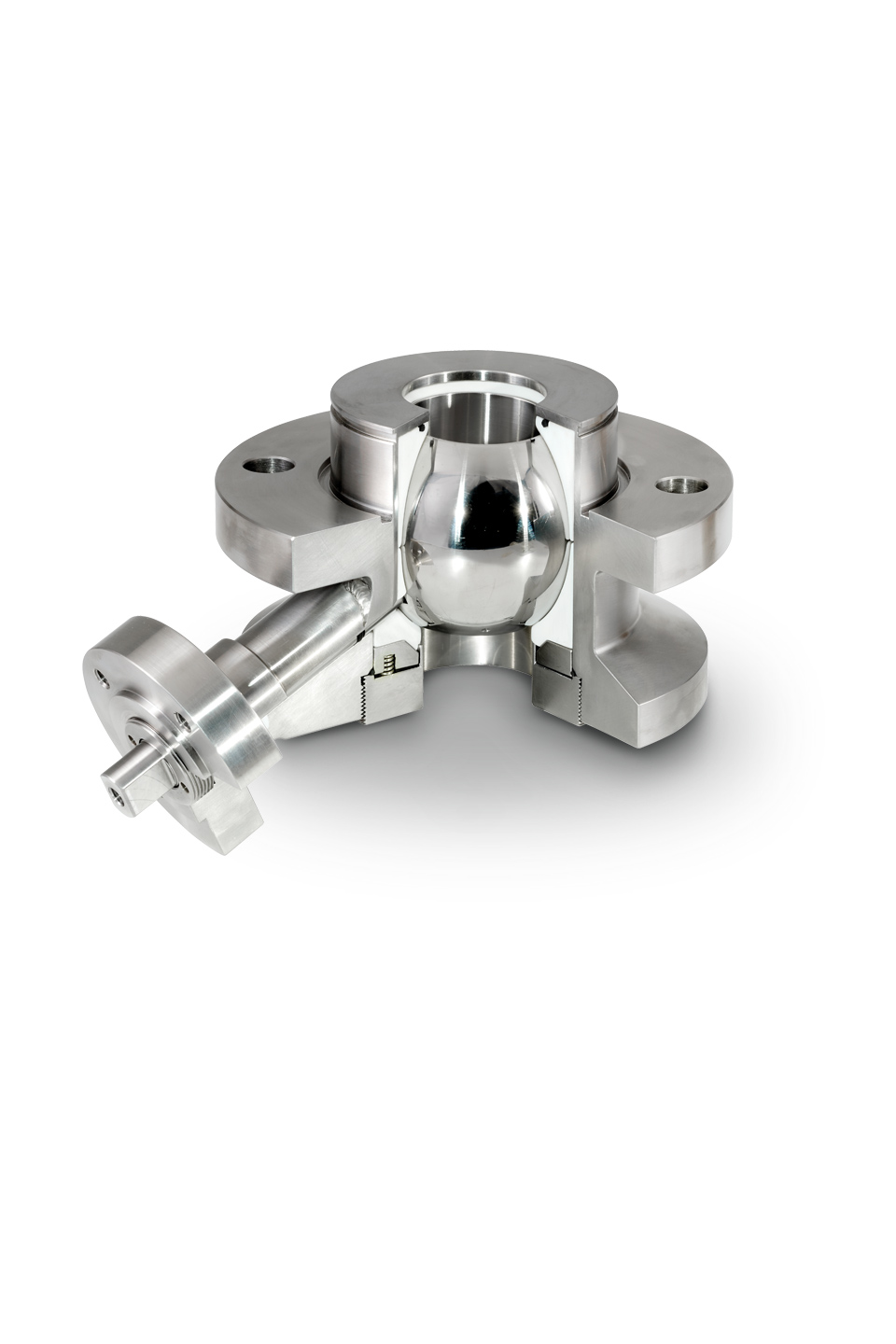

TYPE_BS

» DN 50 - 350

» Cavity free

» Low sump area

» Direct connection to vessel flange

» Customised designs possible
Pic

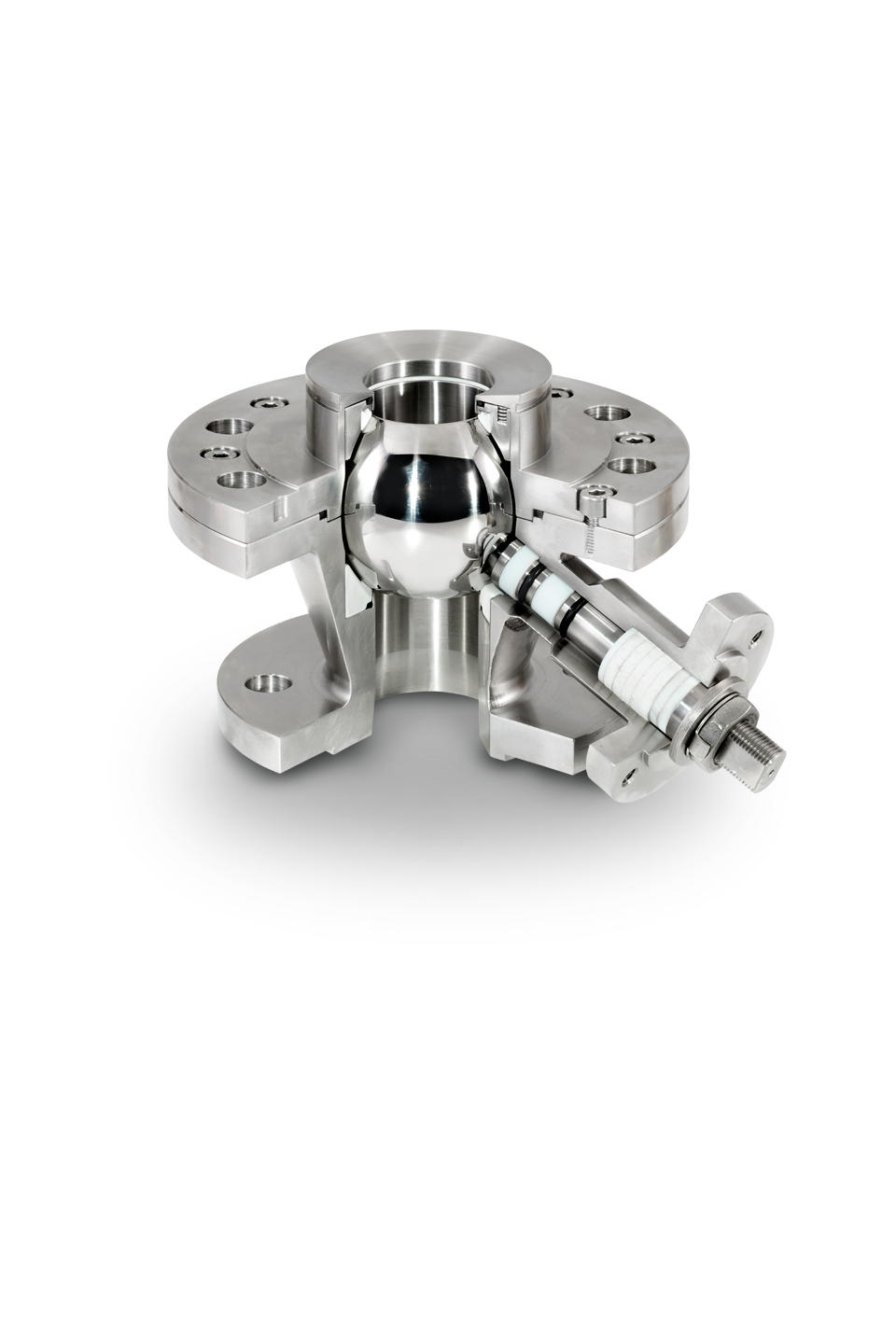

TYPE_ecoline

» DN 25 - 200

» Cavity reduced

» Low sump area

» Direct connection to vessel flange

» Customised designs possible

Technical Data

  • Application

    Applicable

    › Filter dryer

    › Vacuum dryer

    › Agitator tanks

    › Transport vessels

    › Reactor

    › Containers

  • Fields of application

    › Chemical

    › Specialty chemical

    › Petrochemical

    › food

    › cosmetic

    › agrochemical

  • Medium

    › Gases

    › Liquid

    › Emulsion

    › Syrup

    › Suspension

    › Powder

    › Abrasive

    › Viscous

  • Construction

    › free of dead space

    › low dead space

    › full bore

    › slanted stem

    › sump free

    › low sump

    › spring loaded sealing system

    › heavy design

    › light design

    › special design

    › short length

    › special length

    › metallic sealing

    › vacuum

    › vacuum tight.

    › high temperature

    › high pressure

    › Block flange acc. to DIN28117

    › Block flange acc. to DIN28140

    › Free of oil and grease

    › Free of silicone

    › Heating jacket

    › Fire safe

    › Scraper edge

    › TA-Luft

    › FDA

    › BSE/TSE

    › Gas tight

    › Cryogenic

    › Low temperature

    › USP

    › EFSA

    › ADI

    › 3-A

    › Short delivery time

    › Quick delivery

  • Materials

    › 1. 4404

    › TFE - PTFE/fiberglass

    › Viton

    › EPDM

    › FEP-Viton

    › austenitic stainless steels

    › 1.4539

    › 1.4529

    › nickel based alloys

    › Hastelloy

    › Hastelloy B

    › Hastelloy C

    › Alloy 59

    › C276

    › 2.4610

    › 2.4602

    › 2.4605

    › C2000

    › Titanium

    › Duplex

    › Super- Duplex

    › 1. 4410

    › Monel

    › Inconel

    › Incoloy

    › Zirconium

    › PTFE-carbon

    › PTFE-graphite

    › high temperature plastics

    › thermoplastics

    › elastomers

    › PEEK

    › polyimides

    › mHVOF

    › flame spraying

    › graphite

    › FEP jacketed compounds

    › PFA jacketed compounds

    › Kalrez

    › high and low temperature Kalrez

    › PFA/FEP jacketed stainless steel spring core

    › Cryogenic application

    › Silver coated metallic O- and C-Ring
