Compact & hygienic solution for the pharmaceutical & food industry
Multi-way ball valve type Ecoline

The multi-way ball valve type Ecoline is a simplified version of the type MW, designed without a spring-loaded system while maintaining full sealing on all sides. Manufactured from high-quality forged material and proudly Made in Germany, the 3-way ball valve meets the highest quality standards.

With FDA and EC 1935/2004 certification, the Ecoline is ideal for applications in the pharmaceutical and food industries.

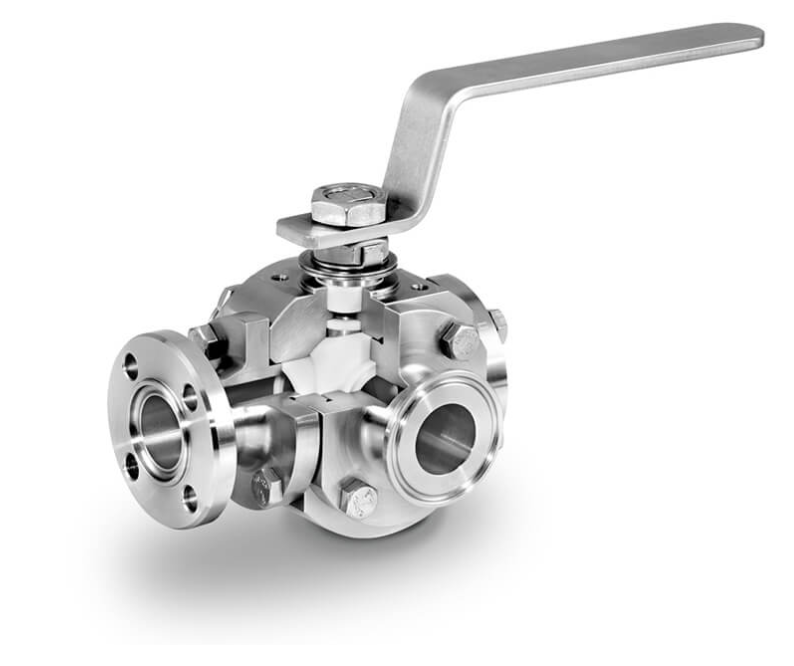

It is available with various connection types, including flanged connections, clamp connections, dairy pipe threads, and other aseptic or customized pipeline connections. A dead space-free version of our 3-way ball valve is also available.

INQUIRE NOW
Standard Configuration
All sided sealed
T- or L- bore
Blow out proof stem

Technical data

  • Application

    Applicable

    › Pipeline

    Areas of application:

    › Chemical

    › Pharmaceutical

    › Food


  • Medium

    › Gases

    › Fluids

    › Emulsion

    › Sirup

  • Design

    Design

    › Cavity free

    › Full bore

    › T- or L- bore configuration

    › All sided sealed

    › Spring loaded ball sealing system

    › Sealing pressure adjustable by means of spiral coil springs

    › Chambered coil springs

    › Self adjustable, maintenance free stem sealing with additional o-ring

    › blow out proof stem

    Additional according to customer requirements:

    › Metal to metal sealing system for high pressure,
    high temperature and abrasive operating conditions

    Connection to pipeline:

    › Flange acc. to EN1092-1

    › Weld end acc. to DIN11850

    › Thread acc. to DIN11851

    › Clamp acc. to DIN32676

    › Aseptic acc. To DIN 11864

    › ANSI flange connection

    Tightness test:

    › Acc. To EN 12266-1 leak rate A

    Actuator mounting flange:

    › DIN/ISO 5211

    Certificates:

    › TA-Luft

    › ATEX 94/9/EG

  • Material

    Metal: 1.4404

    Ball sealing: PTFE & PTFE/25% Glass fibre

    O-Rings: Viton, EPDM or FEP-Viton

    Stem sealing: Packing out of PTFE or pure graphite with additional o-ring

  • Special material

    Metal: austenite stainless steel (904L, 472/649, etc.) nickel- base alloy ( Hastelloy ® B, Hastelloy ® C, C276, Alloy 59 etc.) Duplex , Titanium, Monel ®, Inconel ®, Incoloy ®, Zirconium
    Further materials on request

    Ball sealing: PTFE- Compounds (glass, carbon, graphite, stainless steel, etc.), PEEK, Polyimide, Metal to metal sealing system - High velocity oxygen spraying (HVOF), Flame spraying with additional thermal compaction, Laser deposition welding and Plasma-transferred arc welding (PTA)
    Further materials on request

    Further sealing: graphite, FEP coated Compounds, PFA coated Compounds, Kalrez, high- and low temperature - Kalrez, PFA/FEP coated stainless steel for cryogenic application, silver coated metallic o- and c-rings

    Conformity: USP, FDA, EFSA, ADI, 3-A, oil- and fat free
    Further conformity on request

    Stem sealing: PTFE chevron packing, high temperature packing
    Further materials on request

  • Downloads

Advantages

ATEC Multi-way Ball Valve TYPE_ecoline


Cavity free

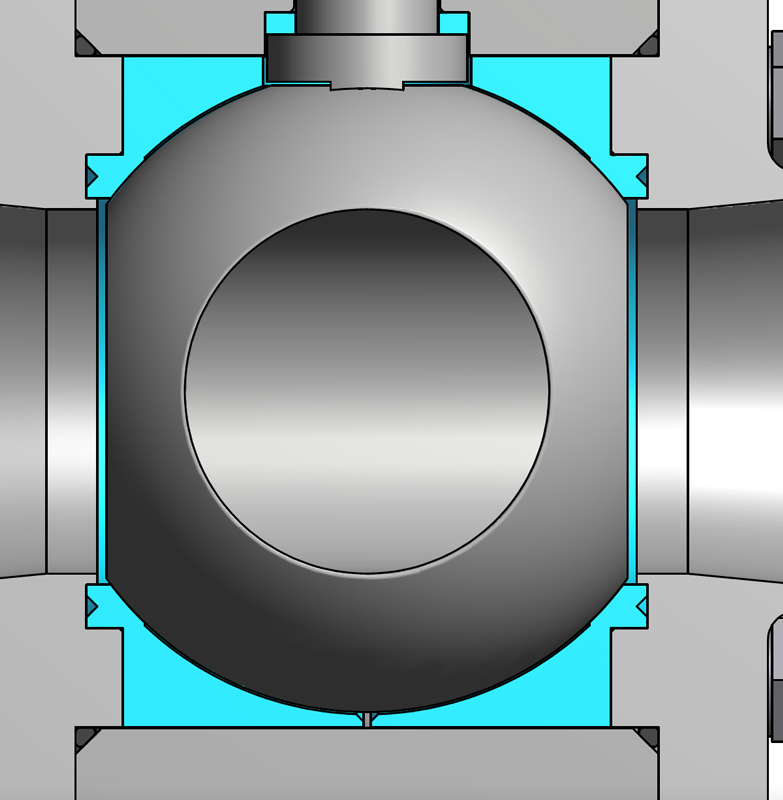

The usual cavity between ball and housing in non- cavity free ball valves give cause for disturbance because residual products can crystallize, polymerize and so affect the function.

› Clean, non- false product

› No sediments of expensive products in the ball valve housing


All sides sealed

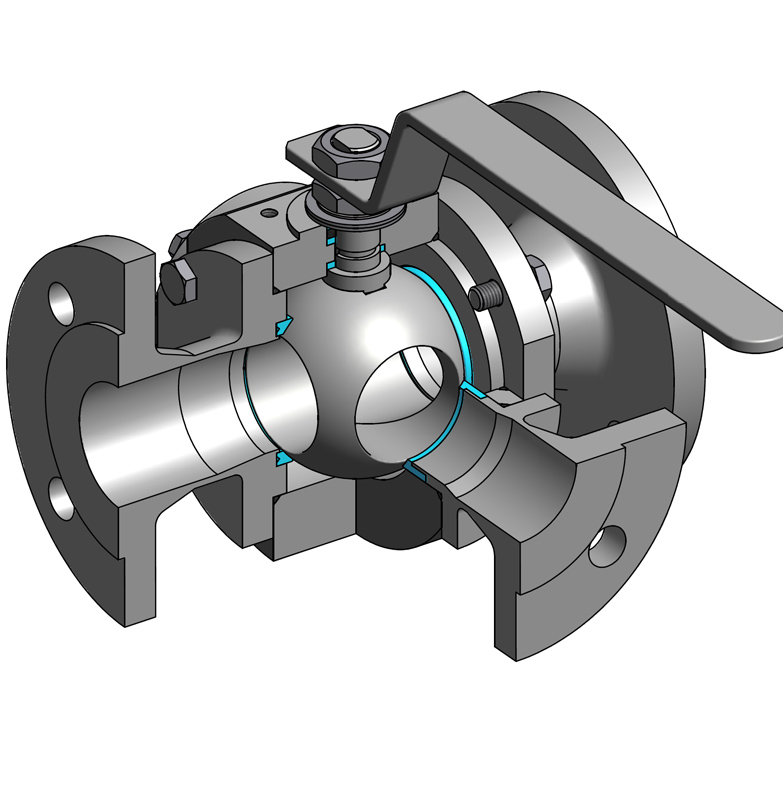

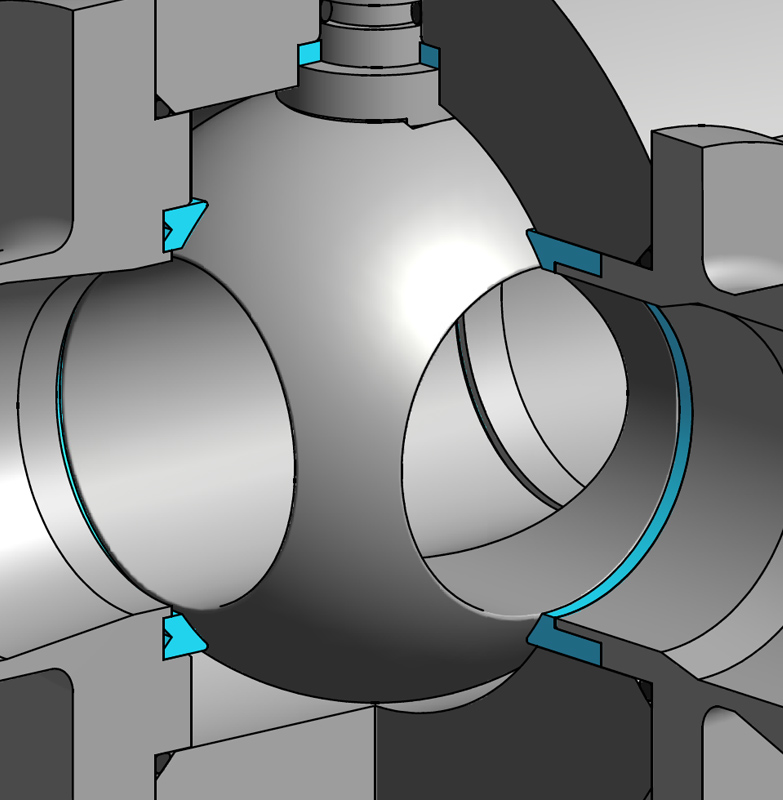

All sides of the ball valve are spring loaded sealed.

› All sides tight – independent product inlet


Standard configuration in special materials

Every standard designed ball valve can be manufactured out of special materials according to customers´ request.

› Standard ball valve out of special materials

Our type selection

Multi-way ball valves from ATEC are characterized by all-round sealing and a blowout-proof control shaft. Available as T- or L-drilling.
