Ball Valve
TYP_PR

› Cavity free

› Low sump area

› Spring loaded sealing system

Inquire now

Size:

DN 25 - DN 100

Pressure max.

40 bar

Suitable for vacuum

Temperature

-196°C to +500°C

Technical data

Application

Applicable

› Filter dryer / vacuum dryer

› Stirrer vessel

› Transport vessels

› Reactor

› Other vessel

Anwendungsfelder

› Chemie

› Pharma

› Nahrungsmittel

› Kosmetik

› Materialtechnologie

› Schmierstoffe

› Lack
Medium

› Gase

› Fluids

› Emulsion

› Sirup

› Suspension

› Granulate material

› Powder
Design

Design

› Low sump area

› Cavity free

› ball with blind bore

› Spring loaded ball sealing system

› chambered coil springs

› Double sealing of vessel flange

› PTFE- Adapter for sample bottle

› Compact design

› One piece body design

› Adjustable and maintenance free stem sealing with additional o-ring

Additional according to customer requirements:

› Metal to metal sealing system for high pressure, high temperature and abrasive operating conditions

› Ball valve design customizable to special vessel flanges

› Piping acc. to customer request e.g. thread, Clamp, Camlock, Swagelok etc.

› Bottom vessel flange contour can be adapted to vessel shape.

› Heating jacket

› Flushing connection

› Extended stem

› Double packed stuffing box design

› Antistatic- Design

› Fire Safe Design

› Scraper chamfer for cutting viscous product

› Product contact surfaces Ra<0,8μm

› Electropolished surfaces

› Oil - and fat free design

› Silicone free design

› Further extras available on request

Connection to vessel:

› Vessel bottom flange acct. to DIN28117/28140

› Special connection acc. to customers´ request

Sampling connection:

› Sample bottle

› Tube bend 45° or 90° with sample bottle

› Thread acc. to DIN11851

› Clamp acc. to DIN32676

› Special connection acc. to customers´ request

Certificates:

› TA-Luft

› ATEX 94/9/EG
Material

Metal: 1.4404

Ball sealing: PTFE & PTFE/25% Glass fibre

O-Rings: Viton, EPDM or FEP-Viton

Stem sealing: Packing out of PTFE or pure graphite with additional o-ring

Coil springs: 1.4404
Special material

Metal: austenite stainless steel (904L, 472/649, etc.) nickel- base alloy ( Hastelloy ® B, Hastelloy ® C, C276, Alloy 59 etc.) Duplex , Titanium, Monel ®, Inconel ®, Incoloy ®, Zirconium
Further materials on request

Ball sealing: PTFE- Compounds (glass, carbon, graphite, stainless steel, etc.), PEEK, Polyimide, Metal to metal sealing system - High velocity oxygen spraying (HVOF), Flame spraying with additional thermal compaction, Laser deposition welding and Plasma-transferred arc welding (PTA)
Further materials on request

Further sealing: graphite, FEP coated Compounds, PFA coated Compounds, Kalrez, high- and low temperature - Kalrez, PFA/FEP coated stainless steel for cryogenic application, silver coated metallic o- and c-rings

Conformity: USP, FDA, EFSA, ADI, 3-A, oil- and fat free
Further conformity on request

Stem sealing: PTFE chevron packing, high temperature packing
Further materials on request

Coil springs: Hastelloy ®
Further materials on request
Downloads

Downloads

Assembly instruction

Advantages

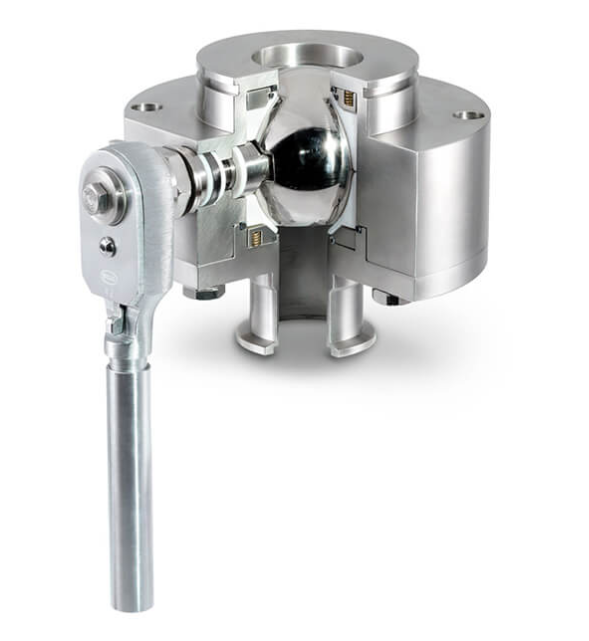

ATEC Sampling Ball Valve Typ_PR

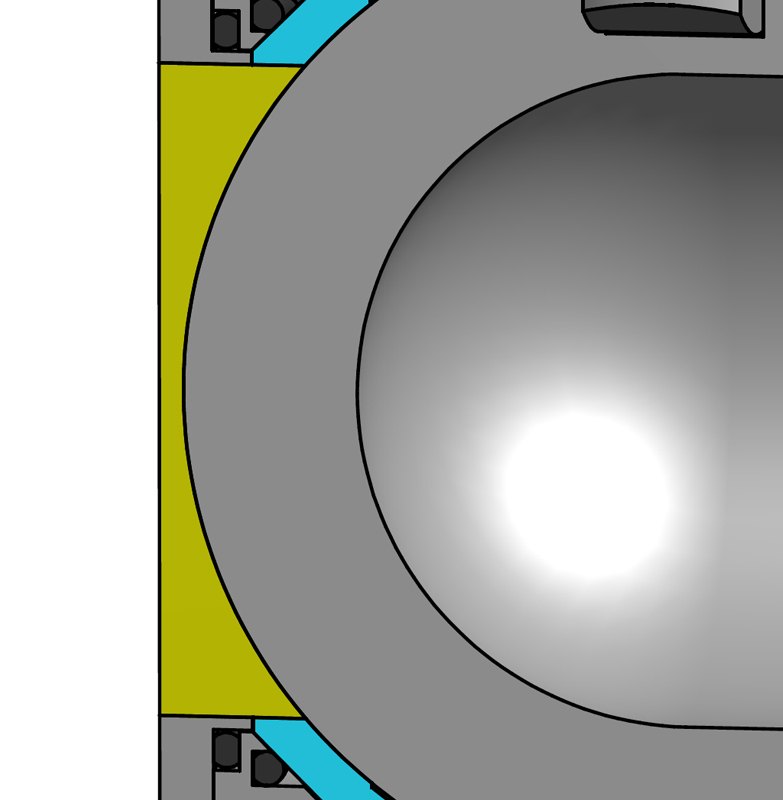

Low sump area

By the use of an angled stem design and the direct mounting to the vessel bottom flange, the ATEC bottom outlet ball valve ensures flush fitting with the vessel inner bottom.

› Minimal accumulation of product between ball valve ball and vessel inner bottom

› Improvement of product mixing in stirrer vessel

› Reduction of efflorescence and product agglomeration

› Avoiding false samples

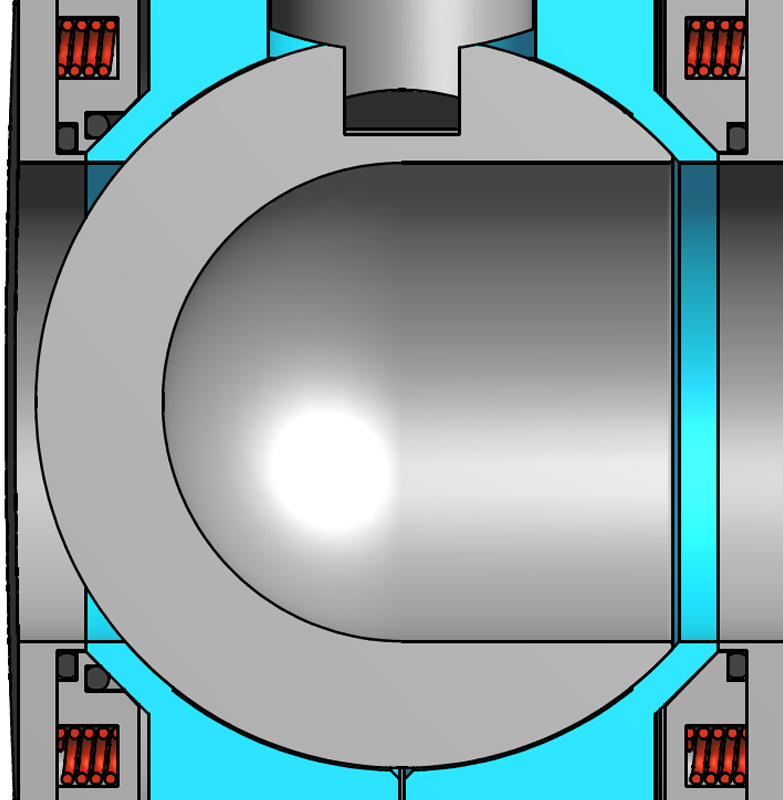

Cavity free

The usual cavity between ball and housing in non- cavity free ball valves give cause for disturbance because residual products can crystallize, polymerize and so affect the function.

› Clean, non- false product

› No sediments of expensive products in the ball valve housingn

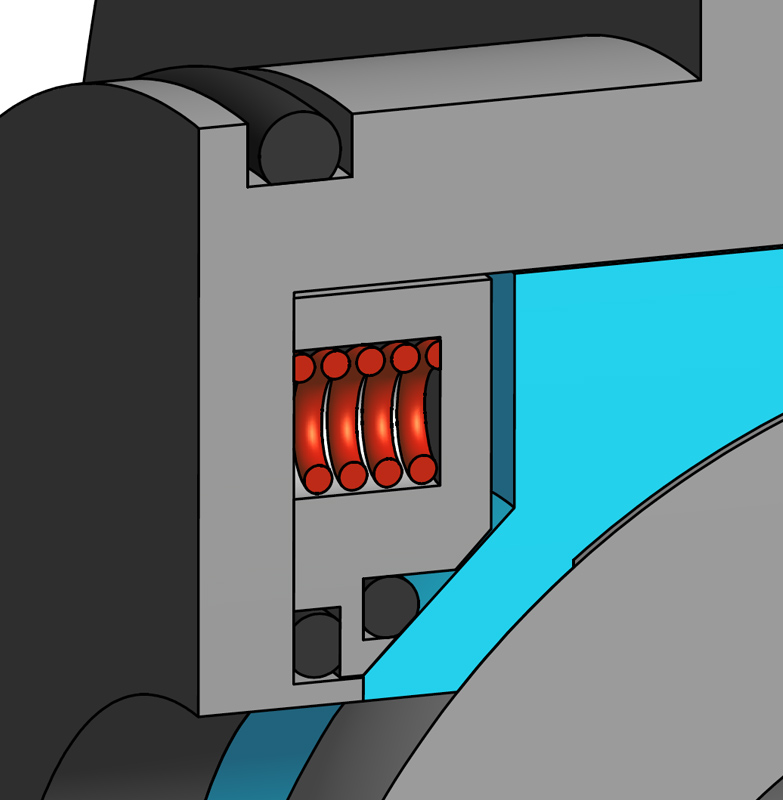

Spring loaded ball sealing system

Approximately same torque at different temperatures This request can only be achieved by ball valves with a spring-loaded sealing system. Different heat expansion of metallic and synthetic material cause high torques by non spring-loaded sealing systems so that the valve can block and does not open or close anymore. Longer lifetime through spring- loaded sealing system. Spring-loaded cavity free ball valves achieve this improvement in a variety of processes. At abrasion, the spring-loaded sealing system guarantees a controlled compression of the ball sealing so that longer sealing life and leak-tightness can be realized

› Longer Lifetime

› Same torque at different temperatures
